CR2032 Battery Guide: Size, Voltage, Capacity & CR2032 vs CR2025

Introduction

Through this guide, we will explain how the CR2032 is modernizing today’s electrical devices. Furthermore, the guide also contains specifications, features, construction, and real-life applications of this small yet powerful energy storage device. By the end, you will be fully aware of everything that there is to know about the CR2032 battery.

CR2032 Explained In a Nutshell

The CR2032 coin cell battery is a small but powerful device that is designed in such a way that it can provide stable energy without needing to replace the cell. Packed in a 3.2mm by 20mm enclosure and made with lithium manganese dioxide (Li-MnO₂) composition, it can provide a steady voltage of 3V throughout the lifespan of the cell.

From an operational standpoint, the CR2032 is a favorite largely because it’s so easy to swap in and out. Since the size is standardized, you’ll find it fits into a huge variety of gadgets without any guesswork. It’s a staple for both home users and industrial setups because you aren’t constantly replacing it—the lifespan is long, and the performance is remarkably steady.

Then there’s the shelf life, which is a massive advantage. Because of the Li-MnO₂ chemistry, you can leave these batteries in a drawer for years, and they’ll still have plenty of power when you finally need them. They’re also tough.

Whether it’s freezing cold or a hot day, these cells keep working. This makes the cell the reliable choice for electronics that have to survive in the real world, not just in a climate-controlled room.

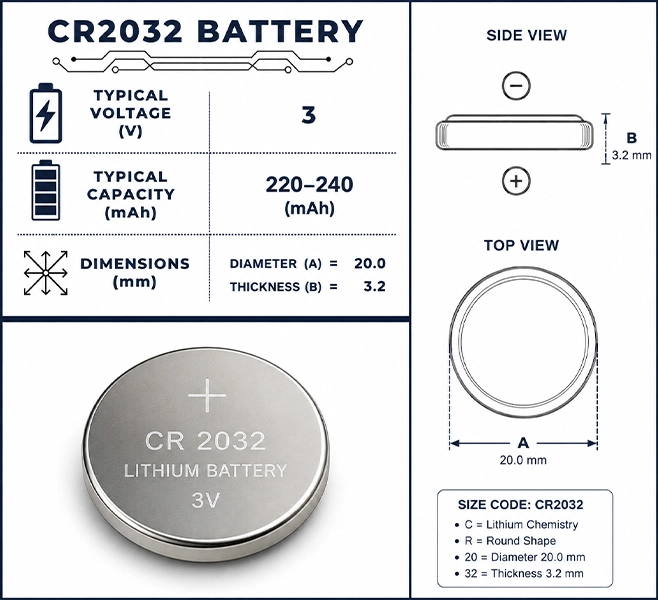

Specifications Of CR2032 Battery

The following table enlists detailed specifications of the CR2032 battery.

CR2032 Features and Perks

CR2032 is changing the way we use batteries in our systems. Apart from the small size and extended shelf life, there are many more features that make this cell a perfect choice for consumer electronics. Some of the outstanding perks are listed below.

Higher Energy Density: Think of energy density as the amount of “juice” crammed into a tiny footprint. The cell is a heavy hitter in this department, which is why your devices don’t just die after a week of use. More importantly, it doesn’t drop off in power—it holds that steady 3V output right until the end. You’ll see this most in things like glucose meters; when you’re checking your health, you need that power to stay rock-solid to get an accurate number.

Improved Temperature Resilience: One of the many reasons the CR2032 3V battery is popular worldwide is its ability to operate in a wide range of temperatures. This perk makes it optimal for use in outdoor/harsh environments. The battery operates effectively in cold temperatures, making it a perfect go-to tool for automotive key fobs and outdoor temperature sensors.

Leakage Resistance: One of the most daunting experiences a user can face is finding out that the battery leaked in the electronic device. Yes, we know that this is an expensive repair. Well, with CR2032, you don’t have to face that. Modern CR2032 batteries are packed with advanced sealing technology, leading to a minimized risk and ensuring a safe operating environment for these smart devices, such as pacemakers and implanted devices.

Minimal Maintenance and Easy Installation: The battery is designed in such a way that it can be replaced in electrical devices without needing to use any special tools. Many devices have simple compartments that hold this battery cell, enabling a seamless replacement. Since the cell is designed according to standards, you won’t have to face the hassle of finding a specific brand. Moreover, we talked about the higher energy density, meaning that this cell holds charge for a long time, and that increases the lifespan. This means that the devices can operate for extended periods, hence no technical maintenance is needed.

Compact and Lightweight: Lastly, weighing only 3 grams, the coin cell makes itself a perfect partner to your electrical devices. The cell can fit into the devices without increasing the weight. Many devices, such as Apple trackers, smart watches, and rings, leverage the advantage of this cell to get the optimum power needed for operation. Not only that, but you can also keep spare cells in your bag in case one dies out. And, believe us, there won’t be any extra weight with you.

CR2032 Battery Types

CR2032 comes with different variations in terms of materials and composition. These types depend on the usage of the electrical devices. Below are some of the common types used industry-wide.

Standard CR2032 (Li-MnO₂, Non-Rechargeable)

Standard CR2032 batteries use lithium manganese dioxide (Li-MnO₂) chemistry and are non-rechargeable.
The standard CR2032 3V battery is the common type that is found in electronic devices. It is a one-time use, non-rechargeable cell that provides a constant voltage in its lifespan. With an output of 3V and a current capacity of 200mAh, it can operate low-draining electronics for a long time. While these are good enough, the only drawback of these cells is that they have to be replaced.

This is the rechargeable sibling that’s gaining a lot of ground. The obvious perk here is that you can top it up frequently instead of tossing it in the bin. While it can handle over 1,000 charge cycles, keep in mind its total capacity is usually lower than the standard version. It’s the more economical choice in the long run.

LiR2032 (Rechargeable Coin Cell)

LiR2032 batteries are not direct replacements for standard CR2032 batteries due to differences in voltage and capacity.
Another most common yet powerful type of lithium battery, CR2032, is the one with the chemical composition Lithium Manganese Dioxide. The major difference between this battery and a standard CR2032 is that the Lithium Manganese Dioxide version is suited for electronics that have higher energy drain. Meaning these applications require a sudden surge of current.

Moreover, they also have higher energy density, leading to enhanced operating time. Talking about the construction, Li-MnO₂ is suited for extreme environments where cold temperatures and higher humidity are paramount.

Components Involved In CR2032 Battery

Now that you have an idea about the overall dynamics of the CR2032 battery, let’s talk about the internal construction of the battery cell. A lot of different parts work together side by side in CR2032 to provide you with the power needed to run the equipment. Here are the key details of these internal components.

Anode

The anode of a CR2032 battery is made of lithium metal, which provides high energy density in a compact form factor.An element that is renowned for its high energy density. The anode side during operation liberates electrons that move through the electrical circuit and energize it. In addition, the electrons move through the electrolyte to complete the electric circuit. The anode side of the battery is made of lithium because of its higher energy density within a small form factor. The other thing to point out is that lithium is a highly reactive element. Hence, the anode is engineered in a manner that mitigates the chances of short-circuiting.

Cathode

The cathode is the positive electrode of the CR2032 battery and is made up of manganese dioxide. The MnO₂ serves as the acceptor of electrons that are generated by the anode side. This transfer of electrons from lithium to manganese dioxide serves as a critical pathway for the effective movement of electrical charge. The reason manganese is used in the cathode is that it is stable, economical, and can provide uninterrupted power.

Separator

The separator is a critical component of the CR2032 battery because it prevents direct contact between the anode and cathode, mitigating the risk of short circuits. The separator is made with a thin porous membrane, typically made of polyethene. The separator is made to be extremely thin to conserve space, but it is strong enough to handle the electrical as well as mechanical stress. In some cases, modern CR2032 batteries have a shutoff mechanism built into the separator that prevents mishaps in case there are any short circuits.

Electrolyte

The travelling between the anode and the cathode is only possible when there is an electrolyte in the battery. CR2032 also has that electrolyte that is either made up of lithium hexafluorophosphate (LiPF₆) or lithium perchlorate (LiClO₄). The salt-based gel-like solutions facilitate the electron movement, allowing for an effective transfer of the electrons. One of the outstanding features of this electrolyte is that the formula is designed to prevent degradation and evaporation. Since lithium ions are prone to moisture, the electrolyte formula is perfect for maintaining the battery over its life span.

Outer Casing

Lastly, there is an outer casing that holds all of these components. The casing is made from stainless steel, which prevents rusting and corrosion. The outer casing is designed to prevent leakage of electrolyte, maintain the structural integrity of the battery, and protect the internal components from extreme temperatures. The outer casing is sealed tightly to stop the moisture from entering the shell and causing short circuits. Some modern CR2032 shells contain pressure vents to purge extra pressure generated from chemical reactions inside the shell.

CR2032 vs CR2025- What is the Difference

Even though both are 3V, they aren’t identical twins. The key differences are:

1. Size:The CR2032 is 3.2mm thick, while the CR2025 is a slimmer 2.5mm. Both share the same 20mm diameter.
2. Capacity:Because the 2032 is thicker, it holds more “fuel”—usually 200-240mAh compared to the 2025’s 160mAh.

Pro Tip: You can often use a CR2025 in a CR2032 slot if you use a small spacer, but you usually can’t fit a CR2032 into a slot meant for a CR2025 because it’s simply too thick to close the lid.

Applications of CR2032 Batteries

CR2032 is a popular battery that is widely used due to its compact size, longevity, and optimum performance. Due to its consistent voltage, it powers today’s electronics like a charm. Let’s talk about the daily applications of the CR2032 battery and how it is powering up the electronics.

CR2032 gives a consistent 3V output for a long time. This makes the cell perfect for time-keeping devices such as watches. This is primarily because it requires fewer battery replacements. The cell is also used in motherboards and ECUs, where it powers up the EEPROM in order to save the time and date. This keeps the data safe even if the boards are off. Talking about the household devices, the cell is popular among toys, alarm clocks, AC remotes, calculators, and automotive key fobs. Due to its small size and higher energy density, the CR cell is used in consumer electronics.

Another most important use these cells is in medical domain. Medical devices require stable power in order to provide accurate readings and vital signs. Heart rate sensors, pedometers, fitness trackers, and glucose machines are some of the devices that use CR2032 lithium cell.

Other than these, CR2032 is also used in a variety of electronics that have size constraints. Some of the devices include

• IOT Devices
• Camera Systems
• Security Alarms
• LED lights
• Smart Trackers

Conclusion

In conclusion, the CR2032 became a standard because it works. It found a perfect middle ground between being thin enough yet providing a sufficient voltage to reliably power modern electronics. When you know what types you have and which are most suitable for your use case, it’s an easy choice.

If you are trying to find out the right battery for your custom design project, consider giving us a call using the contact page. Our team will be happy to assist you.
