1.5V AA, AAA, and D batteries have same output voltage but these are different in terms of size, capacity, and performance. It is important to understand these differences to optimize device efficiency. Differences in size and capacity make each suitable for specific types of applications. This article explores the defining characteristics of these batteries, offers guidance on selecting the right type based on usage, and outlines essential testing methods—including voltage, load, and runtime tests. These basic tests help users evaluate battery health and performance effectively for everyday and critical needs.
Comparison Between AA, AAA, and D Batteries
Voltage Consistency:
The standard voltage of the three main battery types AA, AAA, D Types is about 1.5 Volts. As long as their physical dimensions and shapes are ignored (for a while), their consistent voltage allows them to be used across various device types. So it can be said that compatibility across the broad spectrum of electrical equipment is ensured by the same voltage output despite variations in size and energy storage. The standard voltage which is the basis for device compatibility, normally stays at 1.5V, however it may fluctuate somewhat (new alkaline batteries often read upto 1.6V).
Physical Dimensions:
The physical size of batteries significantly affects where and how they are to be used. AAA batteries are the smallest, measuring 44.5 mm in length and 10.5 mm in diameter, ideal for compact electronics. AA batteries are slightly larger at 50.5 mm × 14.5 mm, balancing size and capacity. D batteries are the largest among the three, measuring 61.5 mm in length and 34.2 mm in diameter, suited for devices which have high current demand. The right battery size ensures proper contact in the battery compartment of device and adequate fit, which is crucial for both electrical performance and safe operation.
Capacity:
The amount of charge that a battery can store and provide back when needed is depicted by its capacity in the units of milli ampere hours. AAA Batteries are suitable for low-drainage devices since they provide about 1000 mAh in the alkaline form. With an approximate capacity of 2500 mAh, the AA batteries provide more power and are best for devices with medium discharge. Having the energy storage capacity of up to 12000mAh, D batteries are the ideal option for long-duration or high-consumption applications. Knowing a device’s capacity directly affects how long it can operate before requiring new batteries, therefore selecting the best kind for the intended duration and use profile is made easier.
Common Applications:
As we have discussed above, size (dimensions) and capacity of a battery make them suitable for different applications. Wireless mouse and remote controllers are examples of compact and low-power devices that require AAA batteries. Likewise, AA types are often utilized in wall clocks, flashlights, portable electronics and toys due to their capacity and size. Going ahead, when we consider larger and more energy-consuming devices like radios, big torches, and medical emergency supplies; these are powered by D batteries. Choosing the right battery relies on device’s power needs and duration of operation, in addition to its size. Selecting right power source guarantees effective energy consumption and extends device life.
Here, table is drawn to give a quick review. Anyhow, alkaline variants are considered while presenting comparison because of their wide availability and use.
| Battery Type | Diameter (mm) | Length (mm) | Typical Capacity (Alkaline) | Common Use Cases |
| AAA | ~10.5 | ~44.5 | 850 – 1,200 mAh | TV remotes, wireless mice, LED lights |
| AA | ~14.5 | ~50.5 | 1,800 – 2,800 mAh | Toys, clocks, game controllers |
| D | ~34.2 | ~61.5 | 12,000 – 18,000 mAh | Boom boxes, lanterns, large flashlights |
Choosing the Battery Type
Choosing AAA Batteries for Low-consumption Devices:
AAA batteries are the best option when choosing batteries for small or less energy-consumption devices. Their limited size makes them ideal for devices with occupy small space, such as digital thermometers and remote control equipment. AAA battery types are suitable for devices that require little electricity over extended periods of time, even if their capacity is less than that of AA or D battery. In order to maximize cost-effectiveness and power dependability in compact devices, battery chemistry should always be matched with consumption frequency and storage length.
Why AA Batteries Offer the Best Versatility?
With a balanced combination of size and energy capacity, AA batteries are the most adaptable 1.5V power source for a variety of uses. Medium sized electronic devices may all use AA batteries since they provide sufficient current for infrequent and moderately demanding equipment. Because they are widely available in rechargeable forms that include alkaline, lithium, and NiMH, consumers have flexibility depending on their demands and budget. Lithium AAs work best in very heated environments, whilst alkaline AAs are excellent for occasional usage.
When to Choose High-Capacity D Batteries?
D batteries, which have alkaline capacities of up to 12,000 mAh, are ideal for use in bigger electrical devices, emergency equipment, and camping supplies. Their relatively larger mass allows devices to run continuously by delivering more stored energy. Customers could think about NiMH rechargeable batteries for frequent, high-use applications, lithium kinds for lightweight durability, or alkaline D batteries for long-term usage and storage. Even though they cost more per unit, their better power production and long-lasting performance make them economical in emergency situations and energy-demanding conditions.

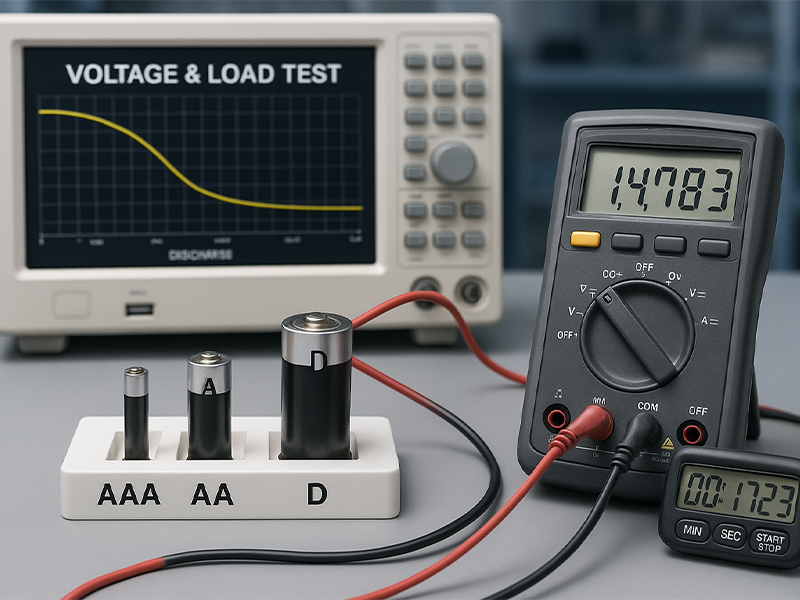

Testing of the Battery
Voltage Test (No Load):
For laboratories or R&D facilities, High Performance EV Battery Test System ensures precise measurement and automated data logging. The most basic approach for determining a battery’s original state using a digital multimeter is to do a voltage test without a load. The open-circuit voltage, which represents the surface charge of the battery, is measured in this test. Nearly 1.6 volts should be displayed by a brand-new alkaline battery. The battery is considered drained and has to be changed if the reading falls below about 1.0 volts. This technique for finding unused or dead batteries is rapid and efficient. It might not, however, completely indicate internal deterioration because it doesn’t replicate real-world usage. However, before putting batteries into delicate or power-dependent devices it’s an effective initial assessment.
Load Test:
Since a load test reflects practical usage situations, it offers a more accurate evaluation of battery health. In contrast to an open-circuit voltage test, a load test measures the battery’s performance under demand by exposing it to resistance. This shows how well the battery can deliver current while maintaining voltage. Using a defined load, specialized battery testers provide a voltage drop or pass/fail reading.The Battery PACK Test System supports dynamic load simulation for accurate battery evaluation. While weak or deteriorating batteries exhibit noticeable dips in voltage, batteries that are healthy maintain a constant voltage under load. Finding batteries that seem fine when there is no load but malfunction when the device is operating is made easier using load testing.
Capacity Test:
The amount of total energy that a battery can provide before being completely depleted can be measured using a capacity test. Most of the time a battery analyzer having a discharge cycle function is used for this kind of test. The device provides an accurate indication of the amount of capacity left by tracking the milliamp-hours (mAh) output over time. When inspecting rechargeable batteries after several usage, this is the most useful performance test. It also shows how output can have been impacted by battery age or storage circumstances. Capacity testing is the best option for serious users who want measurable information on battery efficiency, despite the fact that it takes more time.
Runtime Test (DIY):
Another simple method for testing battery performance in practical situations is the runtime test. You may test how long various batteries survive under the same circumstances by using a constant device, like a little motor or LED light. Comparing different battery types (alkaline, lithium, NiMH), side by side is relatively easier with this technique. To determine the effective runtime of each battery, keep track of how long the device is turned on.
How Manufacturers Test AA, AAA, and D Batteries
Most consumers test a battery in a very simple way: check the voltage, put it into a flashlight, or see how long it lasts in a device. That works for daily use, but for a battery manufacturer, that level of testing is far from enough, The test must be conducted using professional battery testing equipment.
Electrical Performance Testing
Manufacturers measure open-circuit voltage, discharge capacity, internal resistance, and energy output under controlled conditions. These are not random checks. The test environment, load current, temperature, and cutoff voltage are usually defined in advance.
Take an AA alkaline battery rated at 2,500 mAh as an example. One good sample is not enough. The manufacturer needs to see whether multiple samples from the same production batch can reach a similar level. If the numbers jump around too much, that usually means something in the process is not stable.
Automated battery testers record voltage, current, capacity, and temperature during the whole discharge process. Engineers then use the curve, not just the final number, to judge whether the battery behaves normally. Personally, I think the discharge curve tells more truth than the label.
Load and Pulse Testing
A wireless mouse may only need small bursts of current. A camera flash can demand a short but heavy pulse. Toys and flashlights also create changing loads during operation. Because of this, manufacturers run load and pulse discharge tests to simulate real use.
This type of test shows whether the battery can hold its voltage when the load suddenly increases. Some batteries look fine during a standard discharge test, but their voltage drops quickly under pulse load. That kind of weakness is easy to miss if you only look at capacity.
Temperature Performance Testing
Manufacturers place batteries in environmental chambers and test them under cold and hot conditions. A typical range may be around -20°C to 60°C, depending on the product and target application.
Cold temperature usually makes the battery less active, so voltage and usable capacity may drop. High temperature can improve short-term output, but it may also increase leakage risk and shorten storage life. From an engineering point of view, this is always a trade-off. A battery that performs well only at room temperature is not really reliable enough for outdoor equipment or emergency devices.
Safety and Reliability Testing
Manufacturers may run short-circuit tests, over-discharge tests, leakage checks, vibration tests, shock tests, and long-term storage tests. These tests are designed to expose weak points before the product reaches the customer.
For small consumer batteries, leakage is especially annoying. It may not sound as serious as fire or explosion, but anyone who has opened a remote control and found white residue around the battery terminals knows how much damage it can cause. Good battery testing should catch this risk early.
Why This Testing Matters
AA, AAA, and D batteries may seem simple, but consistently producing high-quality products is actually quite challenging.
An excellent battery must not only provide sufficient runtime but also remain safe and reliable during storage, transportation, and actual use. When installed in remote controls, flashlights, medical devices, toys, or emergency equipment, users’ most basic expectation is that the battery will function properly when needed.
From this perspective, the extensive testing conducted by manufacturers is not merely to pass laboratory certifications; more importantly, it aims to reduce the likelihood of unexpected issues encountered by users during real-world use.And this is precisely the true significance of battery testing.
FAQs
Are all AA batteries rechargeable?
No, Not all AA batteries are rechargeable. Charging feature for any size of battery depends upon its chemistry. So, some chemistries of AA batteries are rechargeable like Nickel Cadmium (NiCd) and Nickel Metal Hydride (NiMH); while many other are not rechargeable like those with alkaline and Zinc Carbon chemistries. You must also keep in mind that rechargeable batteries are labelled with this characteristic. Attempt to charge a non-rechargeable battery can lead to leakage or rupture.
Can I use AAA in place of AA battery?
As discussed earlier, AAA and AA batteries have different sizes so one can’t be used directly in place of other. However, there are ways to manoeuvre this situation. For example, you can go for foil hack. Aluminium foil passes current because of its conductive property. You can take aluminium foil from your kitchen cabinet and put it between battery terminal and device terminal to make a conductive path for smaller battery. Anyhow, this is just a short-term solution.
How long does it take to recharge an AA or D type battery?
Provided that battery is rechargeable, AA and D type batteries can take few hours to get charged fully. Anyhow, exact duration can be calculated after knowing battery’s capacity and charger’s power. Battery’s chemistry also plays its part and affects this duration. For example, a D type battery with 12000 mAh capacity is to be charged using a charger which provides 1500mA current continuously. So your battery would take 12000mAh/1500mA = 8 hours to get charged fully.
Can a D type battery be used in a vehicle?
D type battery is bigger than AA and AAA batteries but it is nowhere comparable to automotive batteries. Vehicles need batteries with higher voltage and capacity to start, accelerate, and keep the engine running. Theoretically, you could join multiple cells in series to boost voltage and capacity, but it would not work practically.
In conclusion, understanding the distinctions between AAA, AA, and D batteries—particularly in terms of size, capacity, and performance—is essential for selecting the most efficient power source for any device. While all deliver 1.5V, their differing energy storage makes each suitable for specific applications. AAA battery cell fits low-drain gadgets, AA offers versatility, and D powers high-demand equipment. Testing methods such as voltage, load, capacity, and runtime tests enable users to evaluate battery health accurately. By choosing the right battery type and conducting performance checks, users can enhance device longevity, optimize energy usage, and ensure reliable operation in both every day and critical situations.For comprehensive testing of all battery types, explore SINEXCEL-RE Battery Testing Solutions or contact us for customized systems.
