18650 batteries are cylindrical batteries with nominal voltage in the range of 3.2V to 3.7V. With respect to shape, these batteries are similar to widely used AA batteries but tip shape of AA battery is mostly replaced with flat tip and size is slightly bigger. Cylinder of 18650 battery has a diameter of 18mm and a length of 65mm. Their capacity lies between 1800mAh and 3500mAh. Individual 18650 cells generally do not contain a BMS. Battery packs made from multiple 18650 cells may use a BMS to monitor voltage, temperature, current, and protection conditions. Mostly, these batteries are a type of rechargeable lithium-ion batteries having lithium iron phosphate (LFP) or any other chemistry within this group.
This article covers electrical and mechanical specifications of 18650 battery, various chemistry options for the battery, and its major applications. As AA type battery is very common so we will be presenting a section-wise comparison between AA and 18650 batteries so a beginner could get better understanding about its performance and characteristics. Finally, techniques and tips to prolong 18650 battery life will be discussed to help beginners extend 18650 battery life and make best use of their money.
18650 Battery Specifications
| Specification | Typical Information |
|---|---|
| Format | 18650 cylindrical cell |
| Diameter | Approx. 18 mm |
| Length | Approx. 65 mm |
| Chemistry | Depends on cell design |
| Nominal Voltage | Depends on chemistry |
| Capacity | Depends on manufacturer and model |
| Maximum Charge Voltage | Depends on chemistry |
| Discharge Current | Depends on cell model |
| Rechargeable | Usually, for lithium-ion 18650 cells |
18650 Battery Voltage
The voltage of 18650 batteries varies depending on their chemical composition and manufacturer. For example, most lithium-ion 18650 batteries have a nominal voltage of 3.6 to 3.7 volts, while batteries with other chemical compositions have their own distinct nominal voltage characteristics.
For a typical lithium-ion 18650 battery, the charging voltage is approximately 4.2 volts. However, the minimum voltage at which the battery can be safely discharged varies by manufacturer and battery type; therefore, you should consult the battery’s data sheet for precise guidance.
18650 Battery Capacity
Capacity is another important electrical parameter for batteries as it indicates the duration for which battery can keep some device running. 18650 battery capacity varies considerably depending on cell chemistry, electrode design, manufacturer, and intended application. Commercial cells can cover a broad range of capacities, so the manufacturer’s datasheet should be used as the reference for a specific cell.
18650 Battery Chemistry
| Chemistry | Typical Characteristics | Common Use |
|---|---|---|
| LCO | High energy density | Electronics |
| NMC | Balanced energy and power | Power tools, mobility |
| NCA | High energy density | High-performance applications |
| LFP | Safety and cycle life | Specific applications |
Always check the manufacturer’s datasheet because voltage, capacity, charge limits, and discharge current vary by chemistry and cell design.
18650 vs AA Battery: What’s the Difference?
| Feature | 18650 | AA |
|---|---|---|
| Shape | Cylindrical | Cylindrical |
| Size | ~18 × 65 mm | ~14.5 × 50.5 mm |
| Typical Chemistry | Li-ion variants | Alkaline, NiMH, etc. |
| Nominal Voltage | Chemistry-dependent | Chemistry-dependent |
| Rechargeable | Usually for Li-ion cells | Depends on chemistry |
| Typical Applications | Power tools, packs, mobility | Consumer electronics |
Discharge Rate for 18650 Battery
Discharge rate or ‘C-rating’ of a battery depicts the amount of current a battery can deliver to power a device. This, indirectly, determines discharge time and size of device being powered. The discharge capability of an 18650 cell varies significantly by model. Some cells are designed for high-energy applications, while high-drain cells are designed to deliver much higher current. The manufacturer’s continuous and peak discharge ratings should always be used when selecting a cell.
Other Performance Characteristics of 18650 Battery
Voltage, capacity, and thermal management are primary performance parameters which are discussed already. In this section, we will consider other performance parameters like life cycles, storage life and memory effect on 18650 batteries.
How Long Does an 18650 Battery Last?
The service life of an 18650 battery typically ranges from 300 to 500 charge-discharge cycles. When the battery is operating under high-discharge conditions, its service life is significantly reduced. For example, under such conditions, an 18650 battery may have a service life of only 200 cycles. If a user fully discharges the battery at its maximum discharge current, its service life may be as short as 50 cycles.
Memory Effect of 18650 Battery
Another attractive feature of 18650 type battery is having no memory effect. Memory effect also depends upon chemistry. Most chemistries of 18650 batteries specially lithium base chemistries have no memory effect. This feature gives users liberty to start using battery anytime without full charge.
Storage Life for 18650 Battery
Apart from life cycles, storage life of battery is another important aspect which helps users and prospective buyers decide if they can keep their power storage cell for long period of time without use or not. Storage life depends on chemistry, state of charge, temperature, humidity, and cell condition. For long-term storage, users should follow the manufacturer’s recommended storage voltage and temperature rather than assuming that all 18650 cells can be stored under the same conditions.
Applications for 18650 Batteries
Above discussion shows that 18650 batteries have several attractive features like long cycle life, high discharge rate, high capacity, no memory effect, and good storage life without loss of capacity. Here, we will state different applications of 18650 type batteries while relating them with different operational characteristics.
- High charge and discharge rates, low weight, and long life cycle of 18650 batteries make these batteries suitable for electric powertrains specifically for electric motorcycles.such as the Xiaomi Mi Electric Scooter, which uses 18650 lithium-ion batteries for reliable performance.
- Owing to high discharge rate, high output voltage, and good capacity, 18650 batteries can provide instant high power making them a good choice for flashlights, and other lighting equipment.
- Power toolsg. electric drills, electric screwdrivers need compact, high capacity, and portable power supply. Respective features of 18650 battery cells make these batteries suitable for power tools.

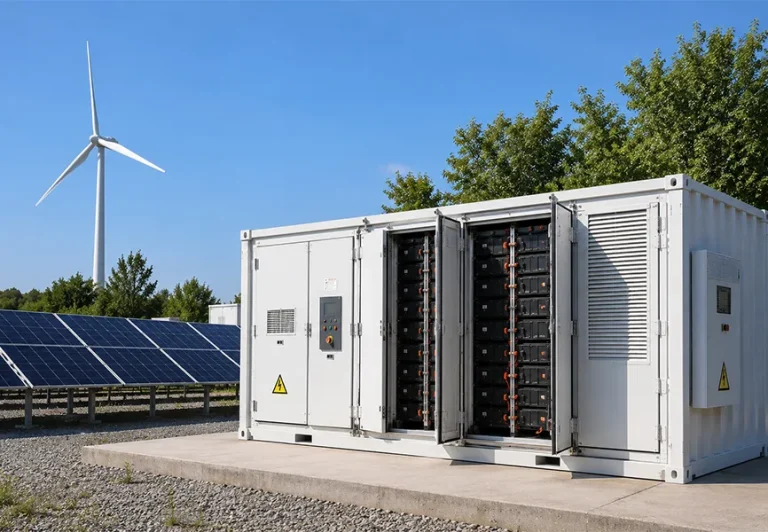

- 18650 batteries are also used as battery energy storage systems for solar energy.such as the Tesla Powerwall, providing reliable power for homes and small businesses.
- In industries and warehouses, 18650 batteries are used in robots and drones to perform repeated tasks and monitor sites, thanks to their reliability, long cycle life, and high capacity.
- In electronic gadgets like laptops, 18650 battery cells can be used to form battery packs.
Prolonging lifespan of 18650 battery
For any user, specifically beginners and environmental enthusiasts, it is quite important to know the ways to prolong their battery life. As it brings economic benefits like reduced replacement costs, predictable and dependable operation, increased uptime and productivity, and higher energy efficiency. Extending battery life has environmental benefits also as less batteries mean resource conservation, reduced waste and pollution, and lower carbon footprint. Considering numerous benefits, tips to prolong lifespan of 18650 battery. are discussed.
Safe Charging Practices
Good charging practices are key to prolong life of any kind of battery including 18650 batteries. You must use charger designed specifically for concerned battery depending upon chemistry and recommended by manufacturer. User shall avoid leaving battery connected with charger for too long so battery doesn’t overcharge. This will also ensure that optimal voltage is maintained. Furthermore, one can invest in smart chargers to regulate and monitor charging process.
Optimal Storage of 18650 Battery
Ambient temperature during storage and operation of batteries impacts their lifetime significantly. It is good to store batteries at moderate temperature ranging between 20 and 25 degrees Celsius. While storing battery, if you expect that storage period would be extended, then try storing your battery partially charged (around 50%). Fully depleted or fully charged batteries would get affected negatively during storage.
Good Usage Conditions
Regarding usage of 18650 batteries, there are many ways to improve battery lifespan. Batteries which experience high discharge rates, are more likely to lose their life cycles as discussed above. So, user must ensure that 18650 battery is discharged at moderate rates. Moreover, deep discharge shall be avoided during discharging phase.
Avoiding Physical Damage and Appropriate Cleaning
Lifespan of 18650 battery is extended significantly if a user keeps batteries in a safe manner to keep them from getting physically damaged. Moreover, dust and other residues from environment get settled on battery terminals. Users must clean terminals with cloth regularly to prolong one’s battery life.
How to Test an 18650 Battery
Testing an 18650 battery involves more than checking its voltage. A voltage reading can provide a quick indication of the cell’s condition, but it cannot show how much capacity the battery can actually deliver or how its internal resistance has changed. For a more complete evaluation, voltage, capacity, internal resistance, and charge-discharge performance should be considered together.
Check the Battery’s Physical Condition
Before performing any electrical test, inspect the 18650 cell for visible damage. Look for a damaged wrapper, dents, corrosion, leakage, swelling, or other physical abnormalities.
A damaged cell should not be used simply because its measured voltage appears normal. Physical inspection is an important first step before connecting a battery to a charger or test equipment.
Measure the Open-Circuit Voltage
Use a suitable multimeter or battery tester to measure the voltage of the cell when it is not connected to a load or charger.
The measured voltage can provide a quick indication of the cell’s state of charge, but voltage alone is not a reliable measure of battery health. Two cells can show similar resting voltages while having significantly different capacities or internal resistance.
For this reason, voltage testing is best used as an initial check rather than a complete battery health assessment.
Perform a Capacity Test
A capacity test measures how much charge an 18650 cell can actually deliver under controlled discharge conditions.
A typical test involves:
- Charging the cell according to the manufacturer’s specifications.
- Allowing the cell to rest if required by the test procedure.
- Discharging it at a controlled current.
- Recording the delivered capacity in Ah or mAh.
- Comparing the measured capacity with the manufacturer’s rated capacity.
Capacity testing is particularly useful for identifying cells that have experienced significant degradation.
Measure Internal Resistance
Internal resistance testing can provide additional information about the condition of an 18650 cell.
As a cell ages or deteriorates, its internal resistance may increase. Higher internal resistance can contribute to greater voltage drop and heat generation during high-current operation.
For more detailed battery evaluation, DCIR testing can be used to assess the cell’s resistance response under controlled current conditions.
Perform Charge-Discharge or Cycle Testing
For applications where battery life and degradation are important, a single voltage or capacity measurement may not be enough.
Repeated charge-discharge testing can be used to monitor:
- Capacity retention
- Charge and discharge efficiency
- Voltage behavior
- Internal resistance changes
- Cycle degradation
This type of testing is commonly used during battery R&D, quality control, and cell performance evaluation.
How to Tell if an 18650 Battery Is Still Good
Although the capacity and performance of 18650 batteries may have declined, their voltage readings may still appear normal. Therefore, voltage readings alone are not sufficient to determine the quality of an 18650 battery.
Signs of a Healthy 18650 Battery
A battery is generally in better condition when it:
- Has no swelling, leakage, corrosion, or physical damage
- Shows stable voltage under normal operating conditions
- Retains a significant portion of its rated capacity
- Does not show excessive voltage drop under load
- Has relatively stable internal resistance
- Does not become abnormally hot during charging or discharging
These indicators should be evaluated against the manufacturer’s specifications and the requirements of the application.
Signs That an 18650 Battery May Be Degraded
Several signs can indicate that a cell has deteriorated:
Severe Capacity Loss:
When the measured capacity is significantly lower than the capacity specified by the manufacturer, it may indicate that the battery has undergone severe degradation.
Voltage Drop Under Load:
Some batteries exhibit normal voltage when open-circuited but show a significant voltage drop when current flows. This indicates an increase in internal resistance, leading to reduced power output.
Increased Internal Resistance:
An increase in internal resistance reduces the battery’s efficiency in delivering current and generates additional heat.
Abnormal Heat Generation:
If a battery exhibits abnormal heating during charging or discharging, it indicates electrical and chemical issues that should not be ignored.
Physical Damage:
Swelling, leakage, damage to the insulation, dents, and corrosion are all warning signs. Even if the voltage remains normal, any physically damaged lithium-ion battery should be taken out of service.
Can Voltage Alone Tell You if an 18650 Battery Is Good?
No.
Voltage is useful for a quick initial check, but it does not directly tell you the battery’s remaining capacity, internal resistance, or cycle life.
For example, a degraded cell may still show a normal resting voltage while delivering significantly less capacity than when it was new.
A more reliable assessment combines:Voltage + Capacity + Internal Resistance + Charge/Discharge Performance
For cells used in professional applications, these measurements can be performed using dedicated battery testing equipment.
Conclusion
18650 battery cells are available in various chemistries including Lithium-ion, lithium polymer, and Nickle metal hydride (NiMH). Their rechargeability feature paired with good capacity, ability to provide high drain currents, low discharge rates, long storage life, and extended life cycles makes these batteries valuable for many applications including flashlights, robots, and electric powertrains.
When selecting or evaluating 18650 batteries, you should first check their nominal voltage, capacity, discharge performance, and physical condition. However, battery voltage alone does not guarantee that the battery is in good condition. Testing the capacity, measuring the DC internal resistance (DCIR), and conducting charge-discharge tests provide a more accurate assessment of the battery’s condition.
Whether you are selecting new batteries or evaluating used ones, you must strictly follow the manufacturer’s guidelines for charging, discharging, storing, and general safety of 18650 batteries. For specialized research and development in battery testing, professional battery testing equipment should be used.
