A 1.5V battery is a very common single-cell battery with an output voltage of 1.5V. However, this value is a nominal value, referring to the voltage at which the battery delivers energy during use; the actual voltage may vary depending on the battery’s chemical composition, state of charge, load conditions, and operating temperature.
Therefore, in addition to the nominal voltage, this tutorial will explore other factors that affect the performance of a 1.5V battery and help you determine when it’s time to replace the battery.
What Voltage Does a 1.5V Battery Actually Have?
1.5V is the rated voltage of a battery. In practice, however, the terminal voltage of a battery varies depending on factors such as the type of chemistry used, the battery’s state of charge, ambient temperature, load current, and the battery’s age.
The open-circuit voltage of a new battery is typically slightly higher than 1.5V. As the discharge process proceeds, the terminal voltage gradually decreases. For example, an alkaline battery may start at a voltage higher than 1.5V and gradually decrease as it discharges.
However, open-circuit voltage alone does not fully reflect the battery’s actual condition. Compared to open-circuit voltage, load voltage provides a better indication of the battery’s usability. Therefore, effective battery testing requires considering both voltage and the battery’s response under load.

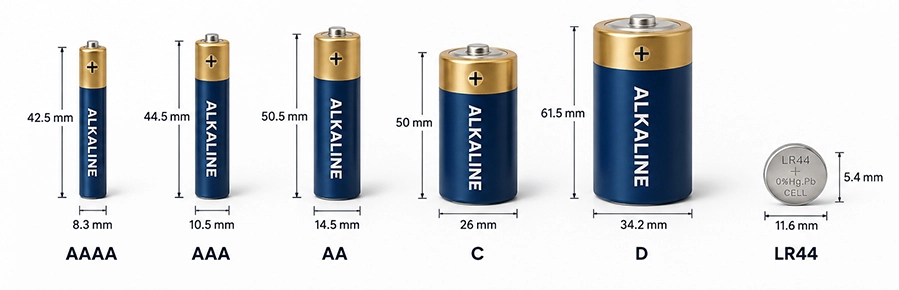

What Size Is a 1.5V Battery?
Several standard sizes share the 1.5V nominal rating, but differ significantly in dimensions and capacity:
| Battery Size | 额定电压 | Approx. Dimensions | 常见应用 |
|---|---|---|---|
| AAAA | 1.5 V | 42.5 × 8.3 mm | Small electronic devices, styluses, compact flashlights |
| AAA | 1.5 V | 44.5 × 10.5 mm | Remote controls, small electronics, flashlights |
| AA | 1.5 V | 50.5 × 14.5 mm | Toys, cameras, flashlights, household electronics |
| C | 1.5 V | 50 × 26 mm | Flashlights, toys, radios |
| D | 1.5 V | 61.5 × 34.2 mm | High-drain flashlights, radios, larger devices |
| LR44 | 1.5 V | 11.6 × 5.4 mm | Watches, calculators, toys, small electronic devices |
Although AA, AAA, AAAA, C, D, and LR44 batteries all have a voltage of 1.5 V, they vary significantly in size and capacity. Among cylindrical batteries, AA and AAA are the most common sizes, while C and D batteries are larger and have greater capacity than AA and AAA batteries. The LR44 battery is a very small button cell primarily used in small electronic devices.
Types of 1.5V Batteries: Chemistry Comparison
1.5-volt batteries are versatile and used in a wide range of devices, from household items to specialized equipment. The performance and suitability of 1.5-volt batteries for different devices depend largely on their chemical composition. Common applications include:
- 遥控器:由于能量需求适中，通常使用 AA 或 AAA 碱性电池供电。.
- 手电筒:根据设计和预期亮度，使用不同规格的 1.5 伏电池。.
- 钟表:经常使用锌碳电池或碱性电池，以满足低功率需求。.
- 玩具和小玩意:依靠可靠的 1.5 伏电池供电，通常是 AA 或 AAA 型电池。.
- 数码相机和便携式电子产品:受益于锂电池高能量密度的高耗能器件。.
As with any lithium battery, avoid short-circuiting, puncturing, or exposing them to high heat, since these chemistries have some minimum risk of leakage or fire under abuse conditions.
| 电池类型 | 可充电 | Main Characteristics | 常见应用 |
|---|---|---|---|
| 碱性 | 没有 | Widely available, good shelf life, balanced performance | Remote controls, toys, flashlights |
| Zinc-carbon | 没有 | Low cost, suitable for low-drain applications | Clocks, basic electronics |
| Primary lithium | 没有 | High energy density, long shelf life, good temperature performance | Cameras, specialty electronics |
| Rechargeable NiMH | 是 | Rechargeable, typically 1.2V nominal | Rechargeable AA/AAA devices |
锌碳电池：经济实惠，用于低排水设备
Zinc carbon batteries are known for their cheapness and find wide application in gadgets that require little energy. The zinc carbon battery is one of the oldest dry cell batteries. It uses zinc for the anode and carbon for the cathode with acidic electrolyte. Such batteries are cheaper, however, their lifetime and energy capacity are smaller. They can be found in remote controls and watches.These include items such as:
- 遥控器:由于能源需求低，经常使用。.
- 挂钟:锌碳电池的使用寿命长，输出功率大。.
- 手电筒:适用于成本较低的应急手电筒。.
碱性电池用途广泛、使用寿命长
An alkaline battery is the right type of battery for most household uses as well as professional uses because of its efficiency and low cost. An alkaline battery has a base or alkaline of potassium hydroxide that provides power. Alkaline batteries use a zinc anode and a manganese dioxide cathode, with an alkaline electrolyte — typically potassium hydroxide — facilitating the reaction. Alkaline batteries are available in various sizes, including AA, AAA, C, and D. They are commonly used in:
- 数码相机:提供闪光灯和液晶显示屏供电所需的高能量。.
- 便携式收音机:为长时间使用提供持久动力。.
- 儿童玩具:可满足许多电子玩具的间歇性高耗电要求。.
锂电池：能量密度高、寿命长
锂电池 utilize lithium as an anode material. They are known for their high energy density, long life, and ability to function well in extreme temperatures. These characteristics make them suitable for high-drain devices like digital cameras and portable electronics. Lithium batteries are known for their superior energy density and extended lifespan, making them ideal for high-drain and critical devices such as:
- 数码相机:高分辨率摄影需要大量电力。.
- 医疗设备:由于其可靠性，被用于血糖仪和胰岛素泵等设备。.
- 高科技小玩意:对于健身追踪器和高级遥控器等需要稳定持久电力的小工具来说，这是必不可少的。.
1.5 伏锂电池：高能量密度，持久动力
1.5 伏锂电池因其卓越的能量密度和使用寿命而受到高耗电设备的青睐。它们适用于
- 数码相机:为高能量功能提供稳定的动力。.
- 便携式电子产品:确保 MP3 播放器和手持式 GPS 等设备的长期使用。.
- 医疗设备:为血糖仪和胰岛素泵等关键设备提供可靠的电源。.
1.5 伏 D 型电池：大型圆柱形电池
D 型电池是较大的圆柱形电池，用于需要在较长时间内提供大量电能的应用场合。它们通常用于：
- Uses in the Household: High drain equipment like big flashlights and radios.
- Uses in Industry: Devices that need dependable and lasting power, such as some motorized devices and emergency lights.
1.5V Button and Coin Cells
You’ll find these 1.5V button cells and coin cells in small devices. These compact 1.5V batteries are ideal for applications where larger-capacity batteries cannot be used. Despite their small size, not all 1.5V batteries are the same—each type has its own advantages.
Understanding 1.5V Button Cell Codes
The codes on 1.5V button cells help you identify the battery’s specifications. This classification system was established by the International Electrotechnical Commission (IEC), where the first letter indicates the battery’s chemical composition:
L – Alkaline battery;
S – Silver oxide battery;
C – Lithium battery (not 1.5V, but 3V);
The second letter, “R,” indicates that the battery is round. Using these codes, you can select the most suitable 1.5V battery.
Common specifications: LR44, LR41, and AG10
Currently, the most common types of 1.5V batteries are the LR44, LR41, and AG10. Each has different dimensions and capacities, measured in milliampere-hours (mAh). The higher the capacity, the longer the battery life. Additionally, 1.5V batteries have many different designations; for example, LR44 corresponds to AG13.
Are 1.5V Batteries Rechargeable?
Standard alkaline, zinc-carbon, and lithium batteries are designed for single use and shouldn’t be recharged unless the manufacturer explicitly states otherwise — attempting to recharge them can cause leaks or, in some cases, rupture.
True rechargeable options in this space work a little differently:
- AA/AAA nickel-metal hydride batteries are rechargeable, but their nominal voltage is 1.2V, not 1.5V.
- “1.5V rechargeable” refers to a relatively new type of battery—namely, a rechargeable battery that incorporates electronic circuitry to regulate its output voltage to a level close to 1.5V.
If you’re choosing rechargeable batteries, it’s worth checking: nominal voltage, charging method, battery type, charger compatibility, capacity, and your device’s specific voltage requirements. Not every “1.5V” rechargeable product performs identically — some regulate voltage more precisely than others under load.
How to Tell If a 1.5V Battery Is Dead
A single voltage reading doesn’t reliably tell you whether a battery is dead — the answer depends on chemistry, load conditions, temperature, and how the battery was manufactured. That said, several signs reliably point to a battery needing replacement:
- Extremely low terminal voltage — indicates the battery is severely discharged
- Voltage drop under load — a sharp voltage drop once the battery is powering a device usually means internal resistance has risen significantly
- Equipment malfunction — dimming lights, a motor losing power, or a device shutting down unexpectedly all point to the battery being unable to supply the power the device needs
- Physical damage or leaks — corrosion, leakage, or swelling should be treated as a hard stop; dispose of the battery according to local regulations rather than continuing to use it
- Low capacity despite normal voltage — a battery can hold its rated voltage while still lacking usable capacity, which is why a capacity test — not just a voltage check — is the more reliable way to confirm a battery’s true condition
If you’re testing batteries regularly — for quality control, product development, or troubleshooting — a simple voltage check often isn’t enough to catch these issues. Consumer battery testing equipment that measures load voltage and capacity directly gives a far more accurate picture than an open-circuit voltage reading alone. For a deeper look at how voltage and capacity testing work together, see our guide on AA电池与AAA电池：电压、尺寸、容量和测试指南.
Using and Disposing of 1.5V Batteries Correctly
Using the correct battery size and chemistry for a given device matters for both performance and safety — mismatched batteries can cause poor performance, device damage, or safety hazards like leaks.
Proper disposal matters too. Batteries contain materials that can harm the environment if discarded improperly. Most types are covered by recycling programs, and many retailers offer take-back services for used batteries.
结论
The 1.5 volt battery is of great importance when it comes to the operation of various machines. Knowledge of the various kinds of 1.5 volt batteries enables you to select the one that best suits your requirements in terms of its functionality. It is important to know how to use and dispose of batteries for maximum efficiency and safety.
